NVIDIA Jetson 整機

Jetson Xavier NX/Orin NX/Orin Nano工控機17F1

適配大疆 Matrice 300, Matrice 30,Mavic 3,Matrice 350 無人機
配備自動撥號型5G模組
尺寸：100mm*74mm*47mm
重量：238g

NVIDIA Jetson Xavier NX / Orin Nano / Orin NX 工控機 17F1

* 適配模組: NVIDIA Jetson Xavier NX/Orin Nano/Orin NX Module

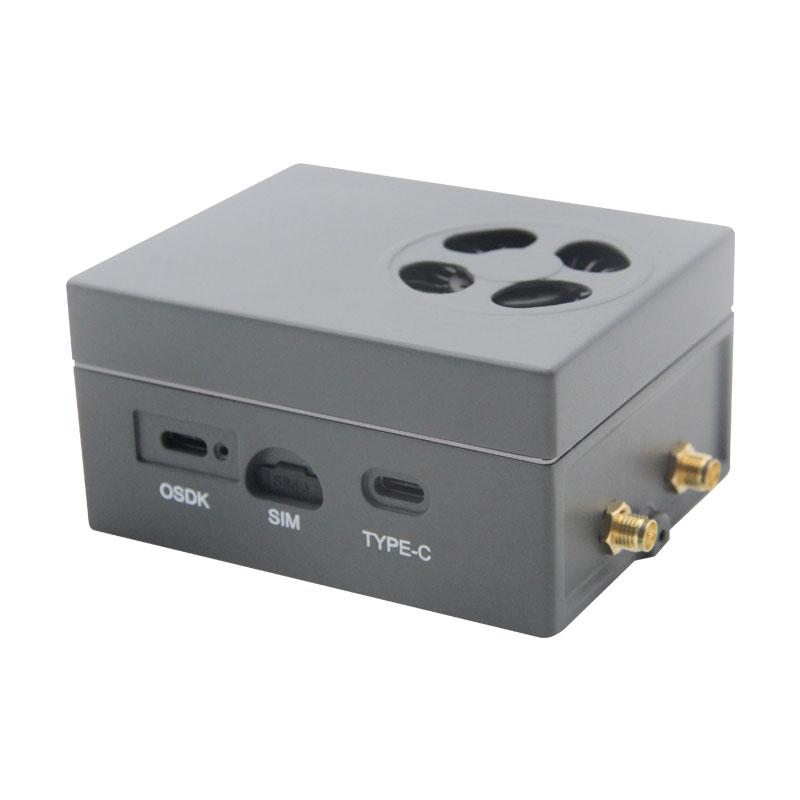

* 通用接口: 1x PSDK, 1x SIM, 1x OSDK, 1x Type-C

* Networking: 5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi 6(Optional)

* OSDK: USB 2.0, UART, PPS, PWM

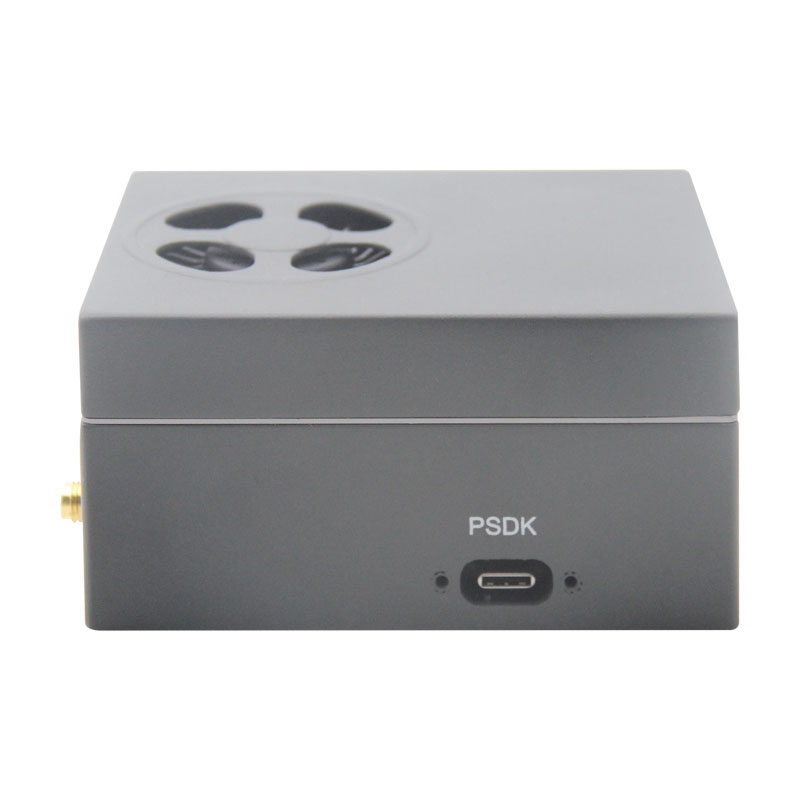

* PSDK: USB 2.0, UART

* 尺寸: 100mm*74mm*47mm

* 工作溫度：-20°C to 65℃

17F1的所有外部接口均做了防護處理，防護等級高達IP65

	ONX16-17F1	ONX8-17F1	ONO8-17F1	NX16-17F1
AI Performance	157 TOPS	117 TOPS	67 TOPS	21 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores			384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3		6-core NVIDIA Carmel Arm® Cortex®-A78AE v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	16GB 128-bit LPDDR4x 51.2 GB/s
Storage	128GB NVMe			16GB eMMC + 128GB NVMe
Video Encode	1x 4K60 (H.265) 12x 1080p30 (H.265) 1x 4K60 (H.264) 11x 1080p30 (H.264)		1080p30 supported by 1-2 CPU cores	2x 4K60(H.265) 22x 1080p30 (H.265) 2x 4K60(H.264) 20x 1080p30 (H.264)
Video Decode	1x 8K30 (H.265) 18x 1080p30 (H.265) 1x 4K60 (H.264) 11x 1080p30 (H.264)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)	2x 8K30(H.265) 44x 1080p30 (H.265) 2x 4K60(H.265) 22x 1080p30 (H.264)
USB Type-C	USB 2.0(480Mbps) , USB 3.2(10Gbps), Displayport(2 Lane)
Networking	5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi 6(Optional)
OSDK	USB2.0, UART, PPS, PWM
PSDK	USB 2.0,UART
Power	30W(12-24V)	25W(12-24V)	20W(12-24V)	25W(12-24V)
Mechanical	100mm74mm47mm 238g
Temperature	-20°C to 65℃
