NVIDIA Jetson 整機

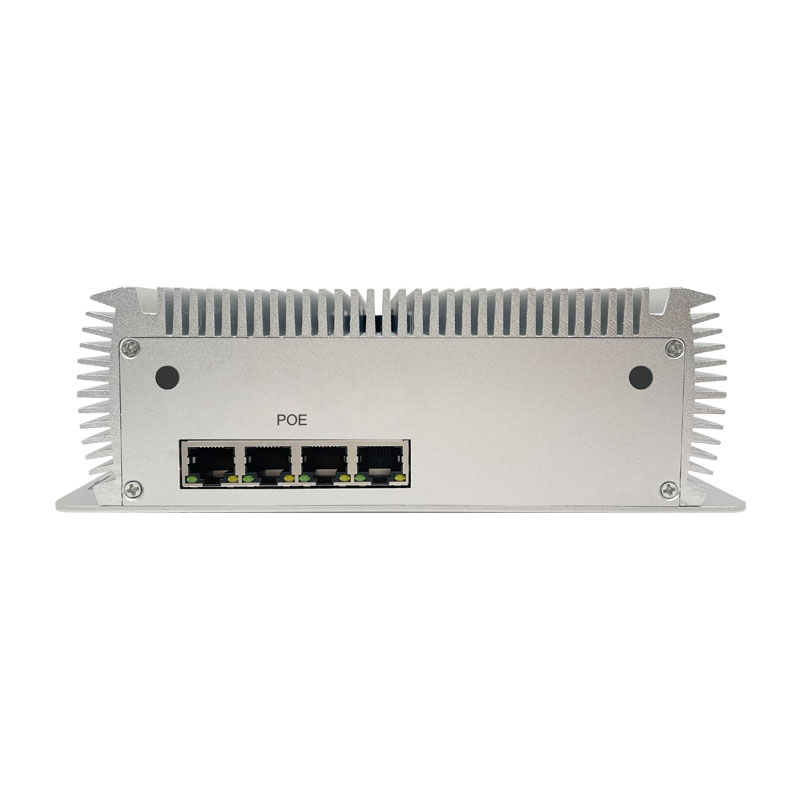

Jetson Orin NX/ Orin Nano工控機 11F2E6

用戶手冊
京東訂購
淘寶訂購

整機默認搭配 128GB NVME 硬盤
可擴展支持 POE 千兆網絡(輸出)
尺寸:202mm x 206mm x 64.5mm
重量:2000g

產品特性

* 適配模組:NVIDIA Jetson Orin NX/Orin Nano Module

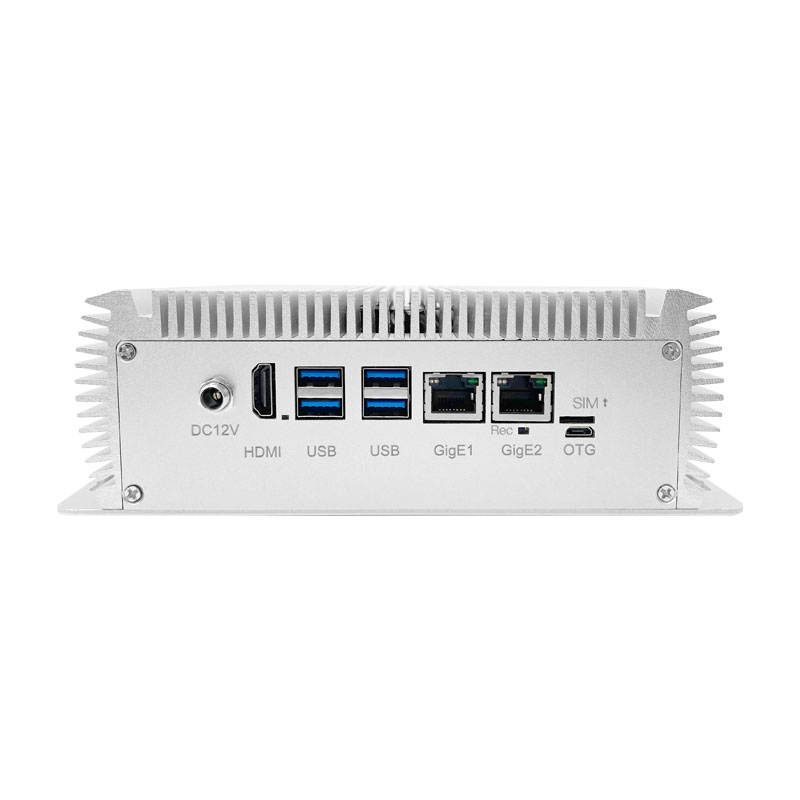

* 通用接口:4x USB 3.0，6x RJ45 PoE，1x HDMI，1x SIM Nano

* Other I/O:1x fan,2x M.2 2242 M key,1x M. 2 3050 B key slot (for 4G/5G module),2x 4 Lane MIPI camera interface FPC connector,2x 20 pin 2.0mm spacing multi-function extension pin connector (including 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 2x UART)

* 輸入功率:DC +12V~ +24V

* 工作溫度:-20°C～+65℃

* 尺寸：202mm x 206mm x 64.5mm

* 重量：2000g。

Module	Orin NX 16GB	Orin NX 8GB	Orin Nano 8GB	Orin Nano 4GB
AI Performance	157 TOPS	117 TOPS	67 TOPS	34 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores			512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU	8-core Arm® Cortex®- A78AE v8.2 64-bit CPU2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	4GB 64-bit LPDDR5 34 GB/s
Storage	(Supports external NVMe)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)		1080p30 supported by 1-2 CPU cores
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Networking	1x GbE
Power	10W - 25W	10W - 20W	7W - 15W	7W - 10W

上一個：Jetson Xavier NX/Orin NX/Orin Nano工控機17F1下一個：NVIDIA RTX 6000 Ada Generation
