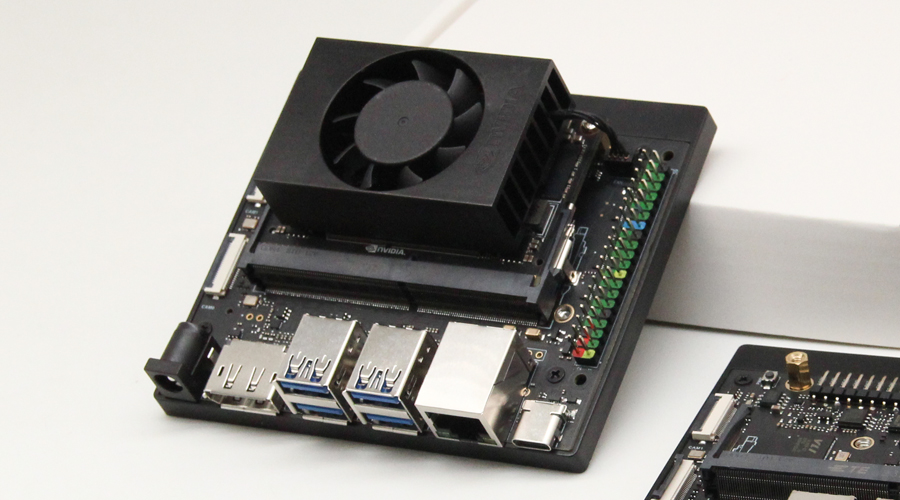

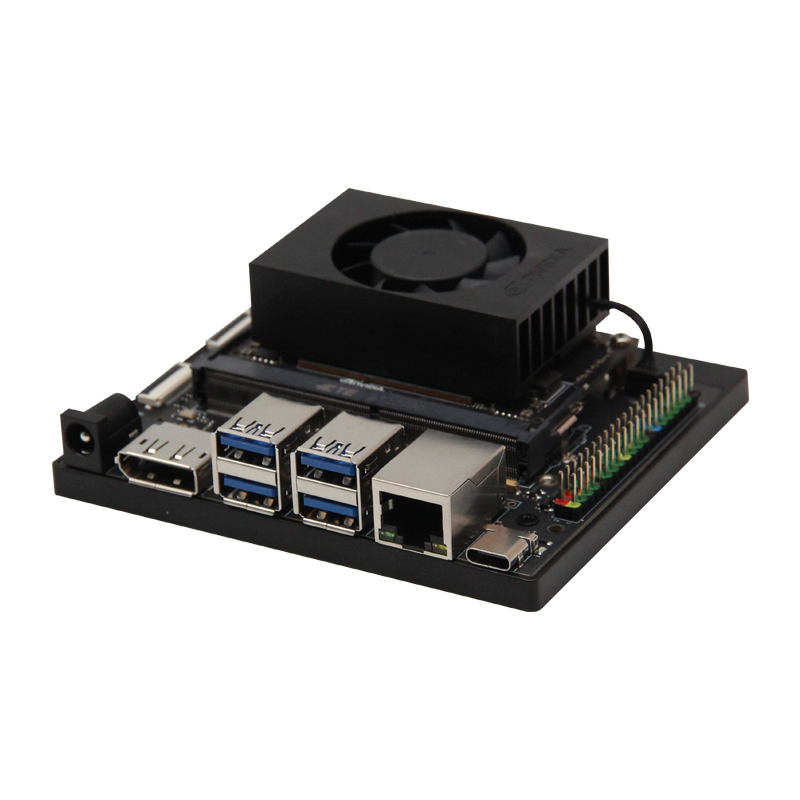

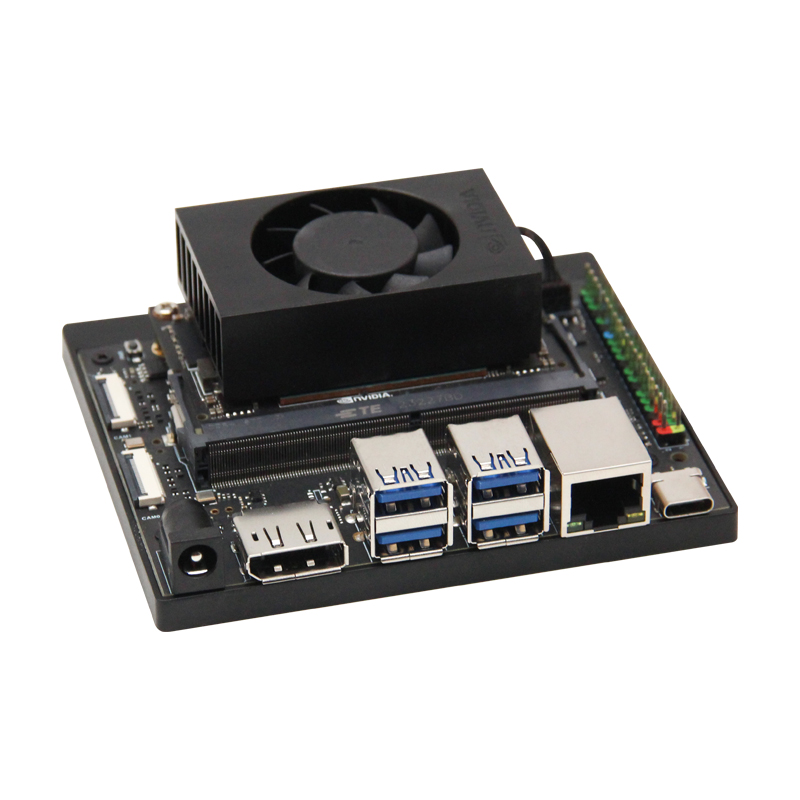

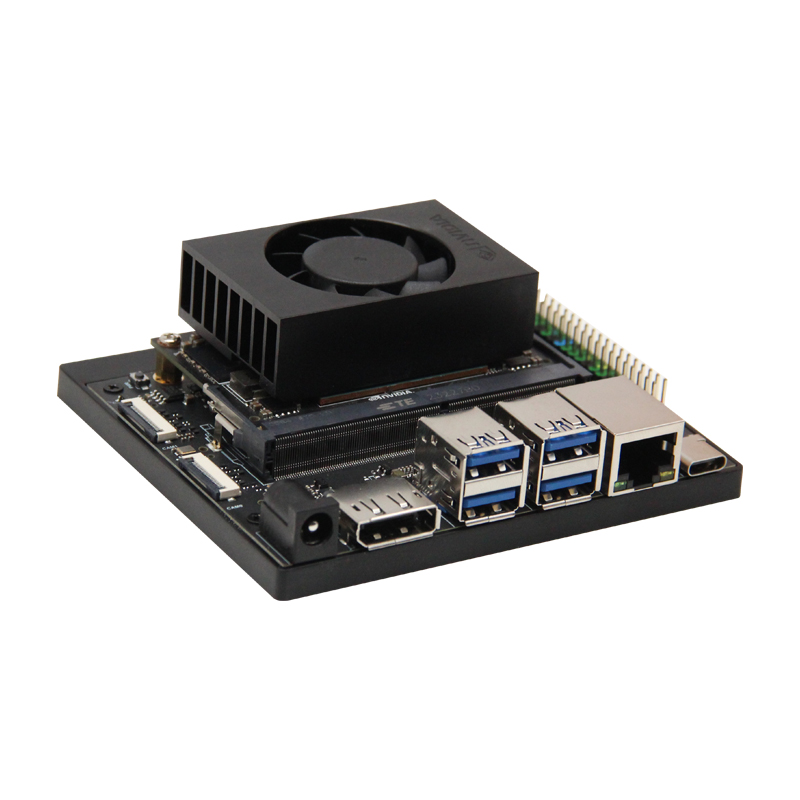

Orin NX/Orin Nano 國產(chǎn)開發(fā)套件
* 適配模組: NVIDIA Jetson Orin NX/Orin Nano Module
* 通用接口: 4x USB, 1x USB Type-C, 1x Gigabit Ethernet(10/100/1000 BASE-T) RJ45
* Other I/O: 1x FAN Connector, 1x M.2 Key E, 2x M.2 Key M, 2x 22 pin MIPI CSI Camera connector, 1x DP
* 輸入功率: DC +9V~+19V
* 尺寸: 104mm*90mm*35mm
* 工作溫度： 0°C to 50℃
|
Product Name
|
ONO-DEV/ONX-DEV (128G/256G/512G SSD)
|
|
Module
|
NVIDIA Jetson Orin NX/Orin Nano Modules
|
|
Type
|
developer kit
|
|
Size
|
104mm*90mm*34mm
|
|
Weight
|
158g
|
|
Temperature
|
0°C~+50°C
|
|
Power Supply
|
DC 9V~19V
* Interface sizes are compatible with 5.5 x 2.4
|
|
USB
|
Type-A：USB 3.2 Gen2 Type-A (10Gbps)
Type-C：can be used for system burning and data communication
|
|
Module
|
Jetson Orin NX 16GB
|
Jetson Orin NX 8GB
|
Jetson Orin Nano 8GB
|
Jetson Orin Nano 4GB
|
|
AI Perf
|
157 TOPS
|
117 TOPS
|
67 TOPS
|
34 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
|
||
|
GPU Max Frequency
|
918 MHz
|
765 MHz
|
625 MHz
|
|
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 |
||
|
CPU Max Frequency
|
2 GHz
|
1.5 GHz
|
||
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
68 GB/s |
4GB 64-bit LPDDR5
34 GB/s |
|
Storage
|
-
(Supports external NVMe) |
|||
|
Video Encode
|
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores
|
||
|
Video Decode
|
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265)
2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
CSI Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
Power
|
10W - 25W
|
10W - 20W
|
7W - 15W
|
7W - 10W
|
|
Mechanical
|
69.6mm x 45mm
260-pin SO-DIMM connector |
|||
