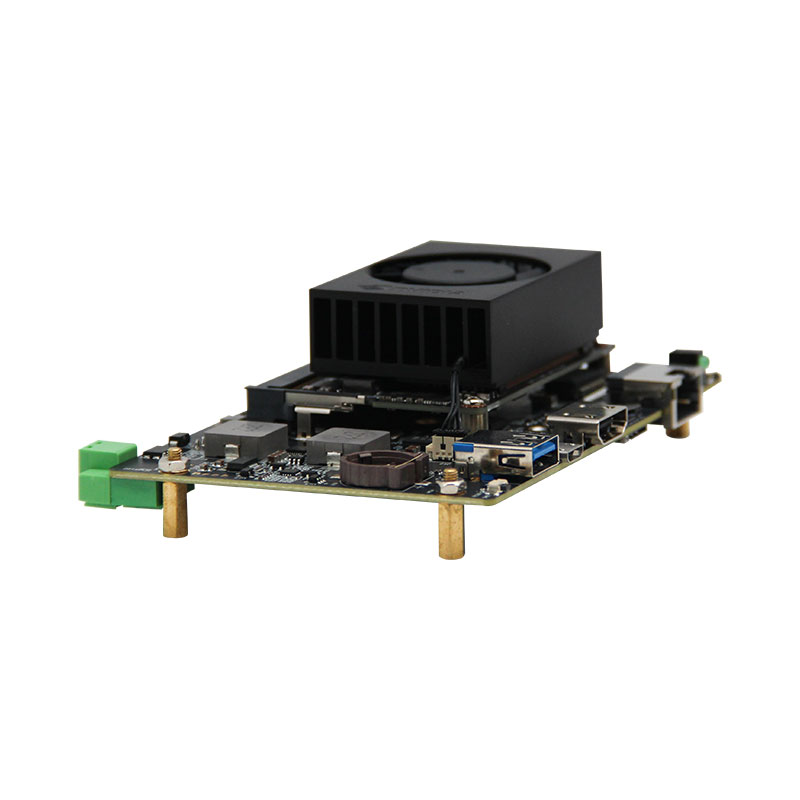

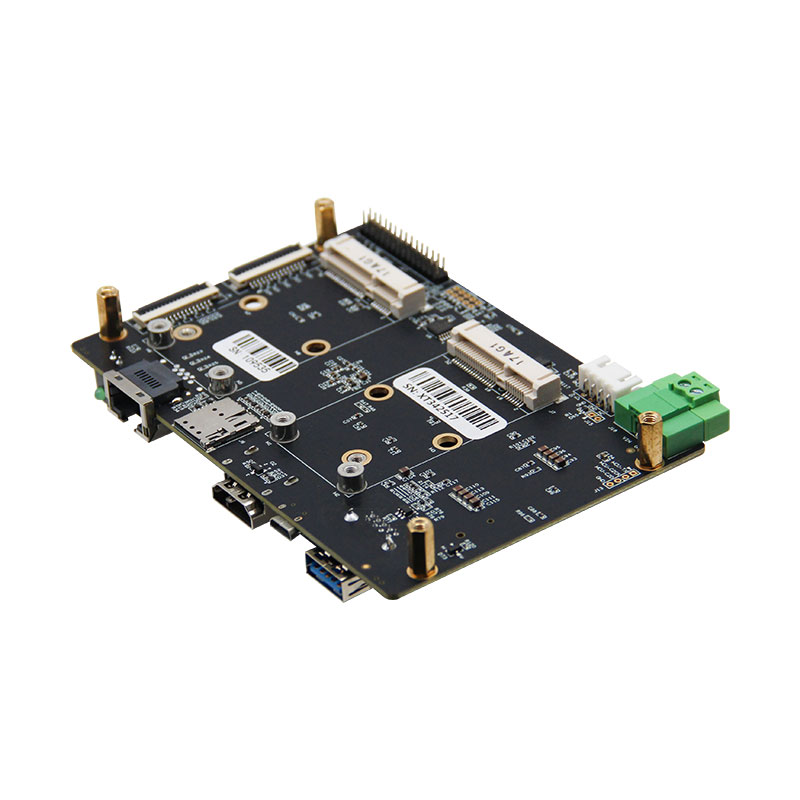

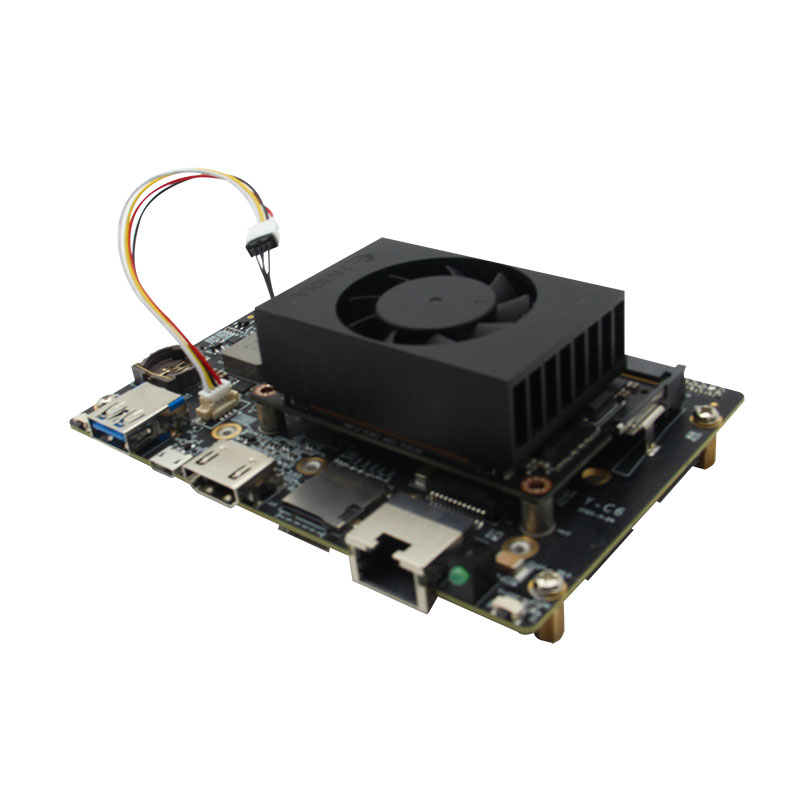

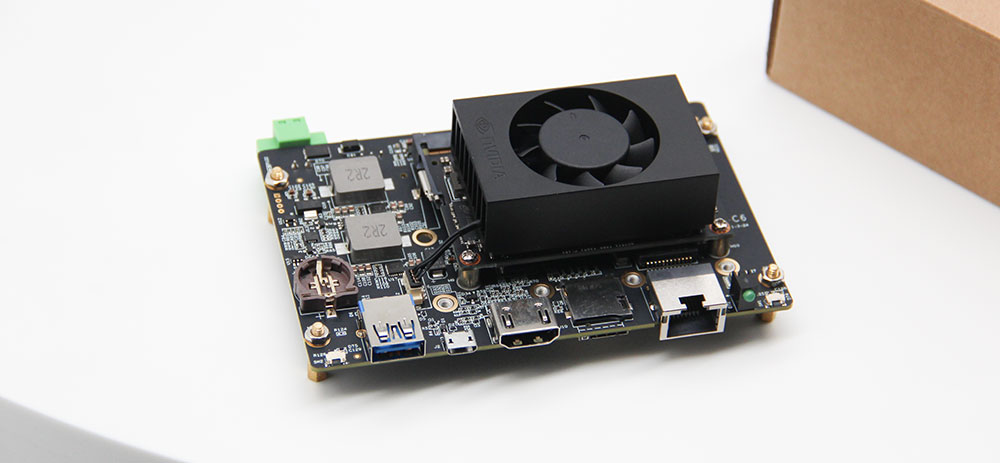

NVIDIA Jetson Orin Nano/Orin NX

Y-C6-DEV 開發套件

* 適配模組:

NVIDIA Jetson Orin NX/Orin Nano/Xavier NX/TX2 NX/Nano Module

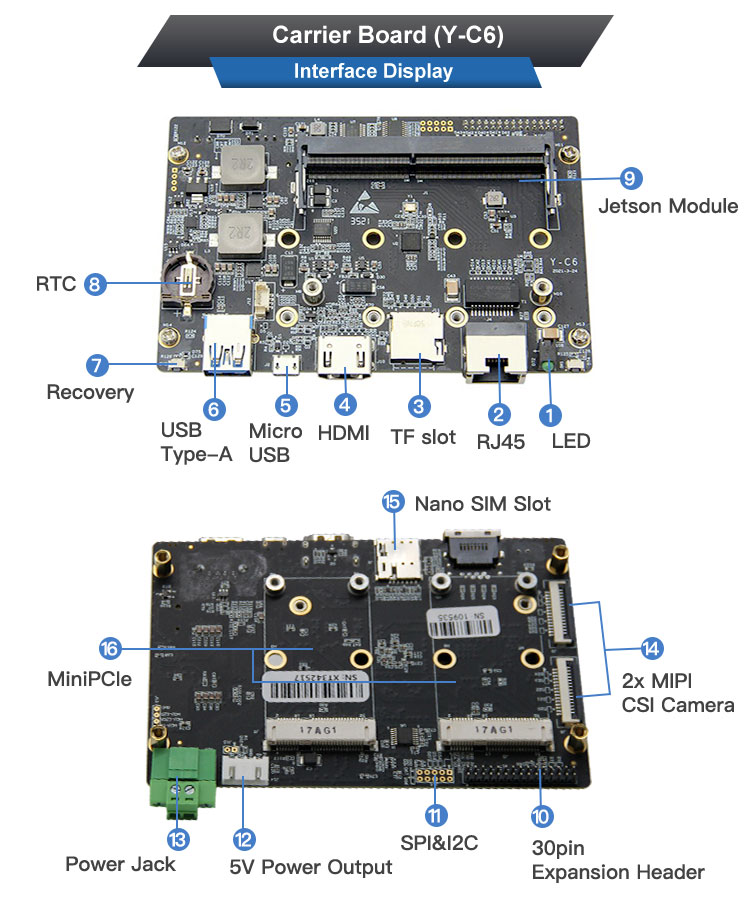

* 通用接口:

1x USB 3.0, 1x Micro USB, 1x HDMI and 1x Gigabit Ethernet(10/100/1000 BASE-T) RJ45

* 外設接口:

1x Micro SD, 1x FAN, 1x Nano SIM, 2x MiniPCIe Connector, 2x 2 Lane MIPI Camera FPC Connectors, 1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C, 1x 20-pin Multi-function

* Input Power: AC to DC /220V to +12V 5A

Product Name	Y-C6-DEV
Type	開發套件
Jetson Module Supported	NVIDIA Jetson Orin Nano/Orin NX/Xavier NX/TX2 NX/Nano
Networking	1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
USB	1x USB 3.0 1x Micro USB
Camera	2x 2 Lane MIPI camera FPC connector
Display	1x HDMI
FAN	1x FAN
Other I/O	1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C
Mechanical	120mm x 80mm x 35mm
Weight	158g
Operating Temperature	-20℃~+65℃

Module	Jetson Orin NX 16GB	Jetson Orin NX 8GB	Jetson Orin Nano 8GB	Jetson Orin Nano 4GB
AI Perf	100 TOPS	70 TOPS	40 TOPS	20 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores			512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	4GB 64-bit LPDDR5 34 GB/s
Storage	- (Supports external NVMe)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)		1080p30 supported by 1-2 CPU cores
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)		Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
Power	10W - 25W	10W - 20W	7W - 15W	7W - 10W

I/O Support

	Xavier NX	Orin NX
HDMI	Support	Support
USB 3.0	Support	Support
Micro USB	Use to Flash System
Micro SD	Support	Nonsupport
RST	Support	Support
GPIO	Support	Support
I2C	Support	Support
CAN	Support	Support
SPI	Support	Support
MiniPCIe	Support	Support
USB 2.0	Support	Support
UART 0	Support	Support
UART 1	Support	Support
UART 2(DeBug)	Support	Support
MIPI	Support	-

Note

*當Y-C6安裝Jetson Nano模塊時，CAN不可用，1 miniPCIe連接器不可用。
