Jetson AGX Orin Developer Kit Specifications
JETSON AGX ORIN MODULE
|
AI Performance |
275 TOPs |
|
GPU |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores |
|
CPU |
12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
DL Accelerator |
2x NVDLA v2.0 |
|
Vision Accelerator |
PVA v2.0 |
| Memory |
64GB 256-bit LPDDR5 204.8 GB/s |
|
Storage |
64GB eMMC 5.1 |
|
Video Encode |
2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
|
Video Decode |
1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) |
|
Camera |
16 lane MIPI CSI-2 connector |
|
PCIe |
x16 PCIe slot: Lower x8 PCIe Gen4 |
|
RJ45 |
Up to 10 GbE |
|
M.2 Key M |
x4 PCIe Gen 4 |
|
M.2 Key E |
x1 PCIe Gen 4, USB 2.0, UART, I2S |
|
USB Type-C |
2x USB 3.2 Gen2 with USB-PD support |
|
USB Type-A |
2x USB 3.2 Gen2 2x USB 3.2 Gen1 |
|
USB Micro-B |
USB 2.0 |
|
DisplayPort |
DisplayPort 1.4a (+MST) |
|
MicroSD slot |
UHS-1 cards up to SDR104 mode |
|
Other |
40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
|
Dimensions |
110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |

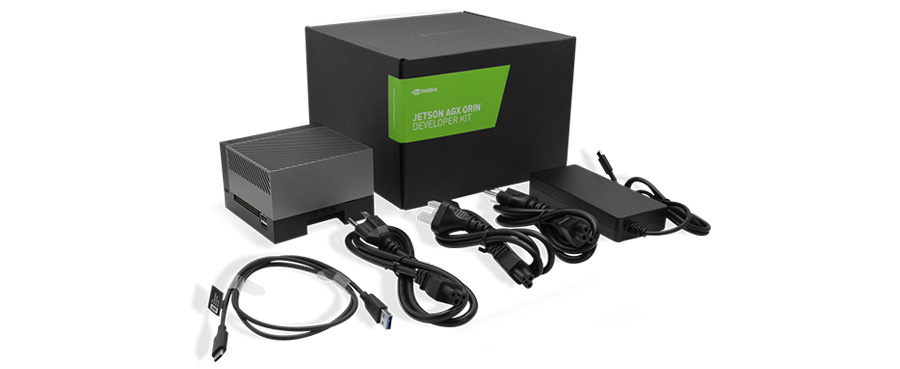

1、Packing Box (including Product manual)
2、Jetson AGX Orin
3、The Power Adaptor
4、The Power Cord (including CE GS/CS BS/FCC UL
5、Type-C to USB interface cable
