NVIDIA Jetson 擴展載板

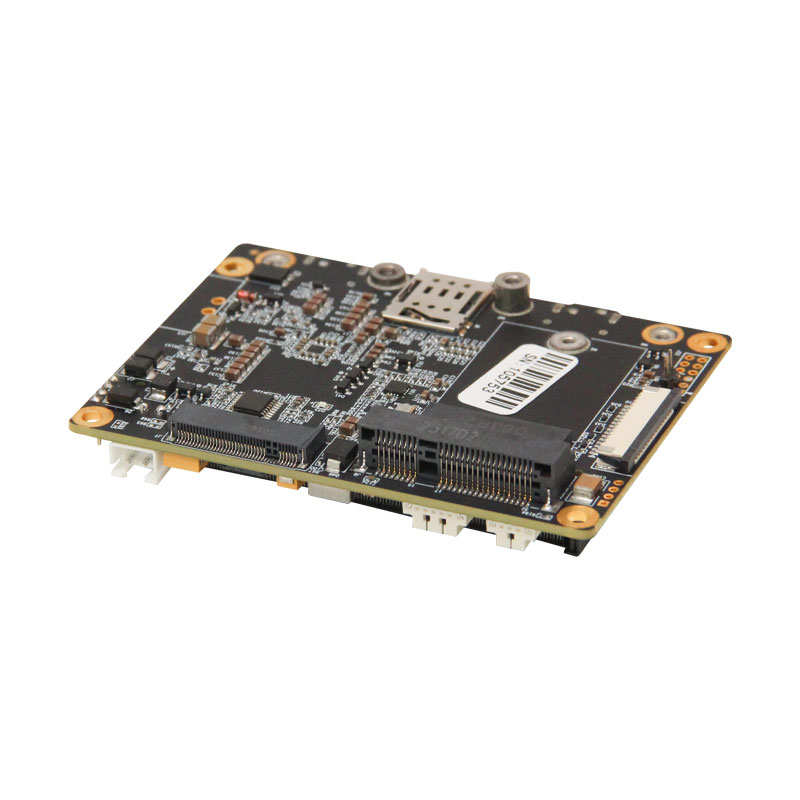

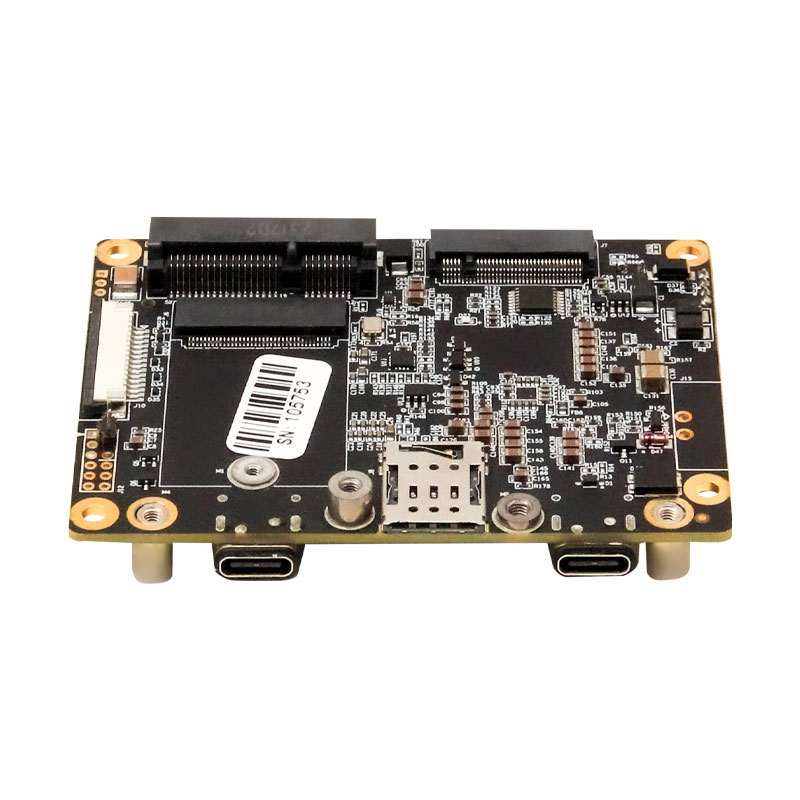

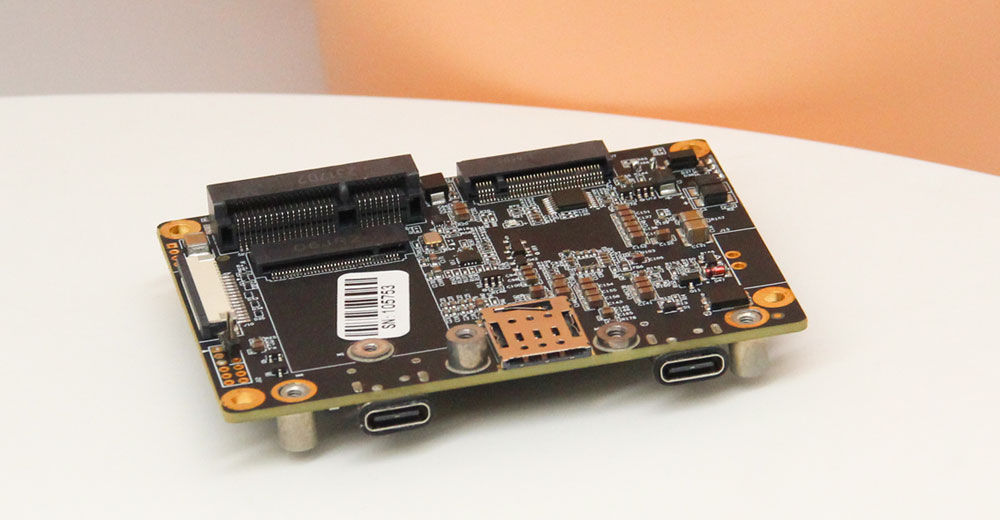

Jetson Orin NX/Orin Nano載板 Y-C17

用戶手冊
京東訂購
淘寶訂購

上電自動開機
防脫落電源接線端子
板卡尺寸:85mm * 63mm * 18mm
電源輸入:DC +12V ~ +24V
工作溫度:-40 ~ +85°C
重量:45g

NVIDIA Jetson Xavier NX/Orin Nano/Orin NX

載板/開發板 Y-C17

產品特性

* 適配模組: NVIDIA Jetson Xavier NX/Orin Nano/Orin NX Module

* I/O interface: 2x Type-C, 1x Nano SIM, 1x MiniPCIe connector

* M.2 connector:

1x M.2 2230 M key slot

1x M.2 3050 B key slot(Expandable 4G/5G communication module)

* Camera: 1x 2 Lane MIPI camera interface FPC connector

* 規格: 85mm*63mm*18mm, 45g

* 工作溫度: -20°C to 65℃

* 輸入功率: DC +12V～+24V

Type-C connector	2	Nano type SIM card connector	1
MiniPCIe connector	1	M.2 2230 M key slot	1
M.2 3050 B key slot(Expandable 4G/5G communication module)	1	2 Lane MIPI camera interface FPC connector	1
3.3V RTC power supply port	1	Fan control interface(5V)	1

NVIDIA Jetson Orin Nano and Orin NX 模組參數

	Jetson Orin NX 16GB	Jetson Orin NX 8GB	Jetson Orin Nano 8GB	Jetson Orin Nano 4GB	Jetson Xavier NX 16GB	Jetson Xavier NX 8GB
AI Perf	157 TOPS	117 TOPS	67 TOPS	34 TOPS	21 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores		1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	512-core NVIDIA Ampere architecture GPU with16 Tensor Cores	384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3		6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	4GB 64-bit LPDDR5 34 GB/s	16GB 128-bit LPDDR4x 59.7GB/s	8GB 128-bit LPDDR4x 59.7GB/s
Storage	- (Supports external NVMe)				16GB eMMC 5.1
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)		1080p30 supported by 1-2 CPU cores		2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265)
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)		2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)		Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)		Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
PCIe	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)		1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)		1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3)
USB	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0		3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0		1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
Power	10W - 25W	10W - 20W	7W - 15W	7W - 10W	10W - 20W
Mechanical	69.6mm x 45mm 260-pin SO-DIMM connector
