NVIDIA Jetson 核心模組

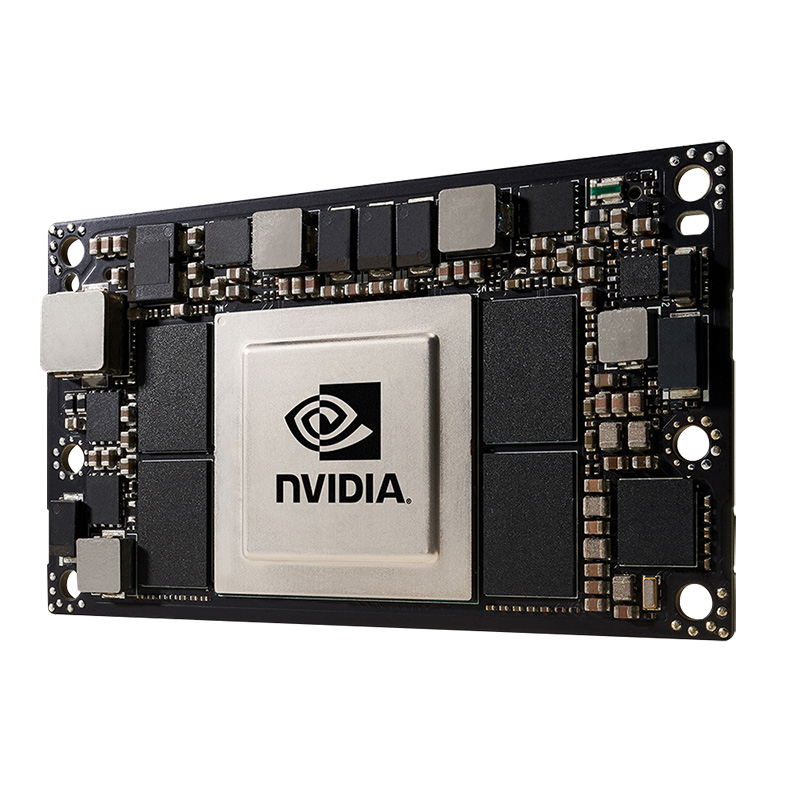

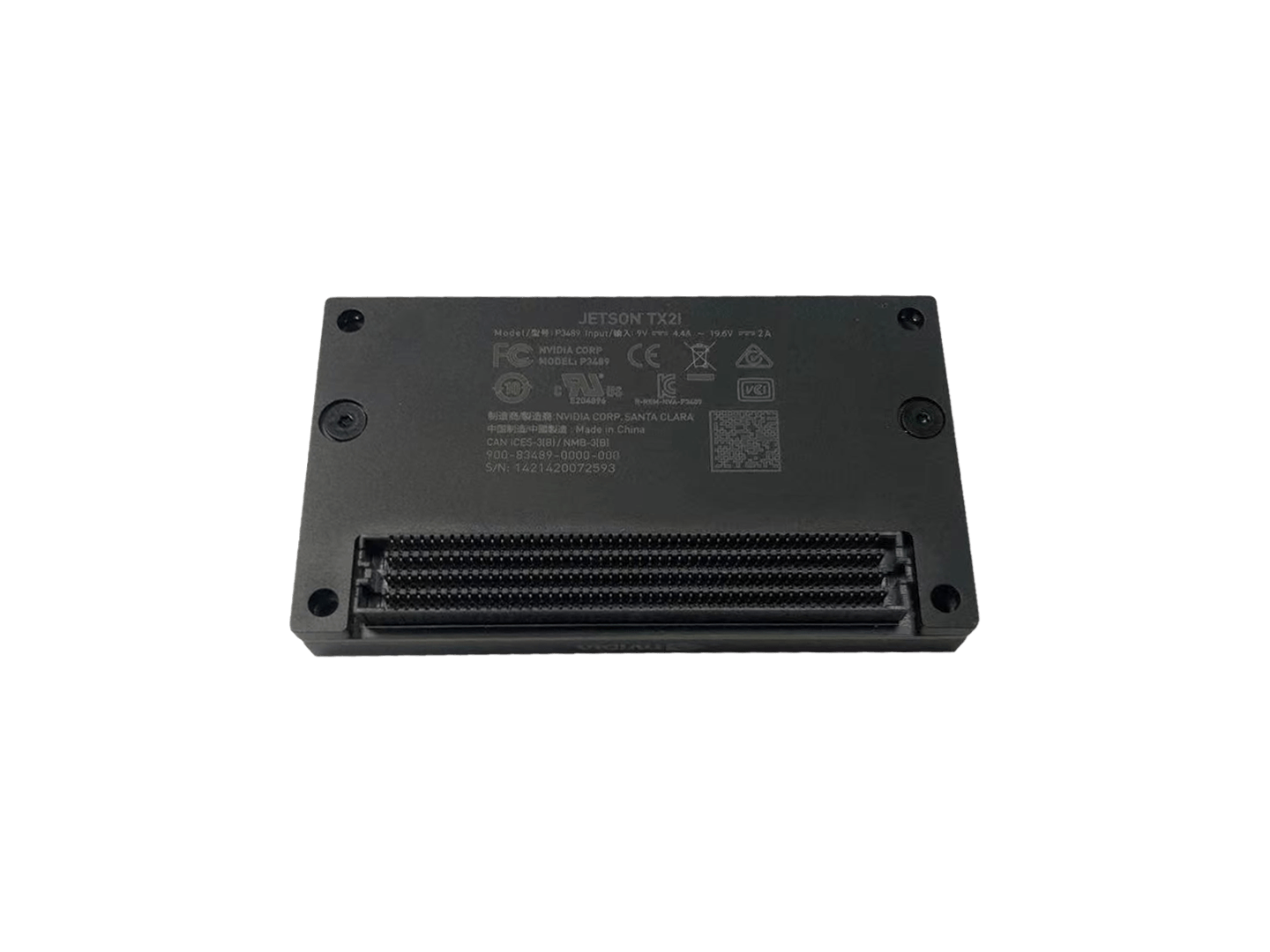

Jetson TX2i 模組

Jetson TX2i 模組擁有堅固設(shè)計、小巧外形和更低能耗，堪為工業(yè)機器人、機器視覺相機等邊緣計算設(shè)備的理想選擇。

	TX2 NX	TX2 4G	TX2		TX2i
AI Performance	1.33 TFLOPS				1.26 TFLOPS
GPU	256-core NVIDIA Pascal^? GPU
CPU	Dual-core Denver 2 64-bit CPU and quad-core Arm^® Cortex^®-A57 MPCore processor
Memory	4 GB 128-bit LPDDR4 51.2GB/s		8 GB 128-bit LPDDR4 59.7GB/s		8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s
Storage	16 GB eMMC 5.1		32 GB eMMC 5.1		32 GB eMMC 5.1
Power	7.5W \| 15W				10W \| 20W
PCIe	1 x1 + 1 x2 (PCIe Gen2)	1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)
CSI Camera	Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)	Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Video Encode	1x 4K60 (H.265) \| 3x 4K30 (H.265) \| 4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265) \| 7x 1080p60 (H.265) \| 14x 1080p30 (H.265)
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane)	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane)
Networking	10/100/1000 BASE-T Ethernet			10/100/1000 BASE-T Ethernet, WLAN		10/100/1000 BASE-T Ethernet
Mechanical	69.6 mm x 45 mm 260-pin SO-DIMM connector	87 mm x 50 mm 400-pin connector
