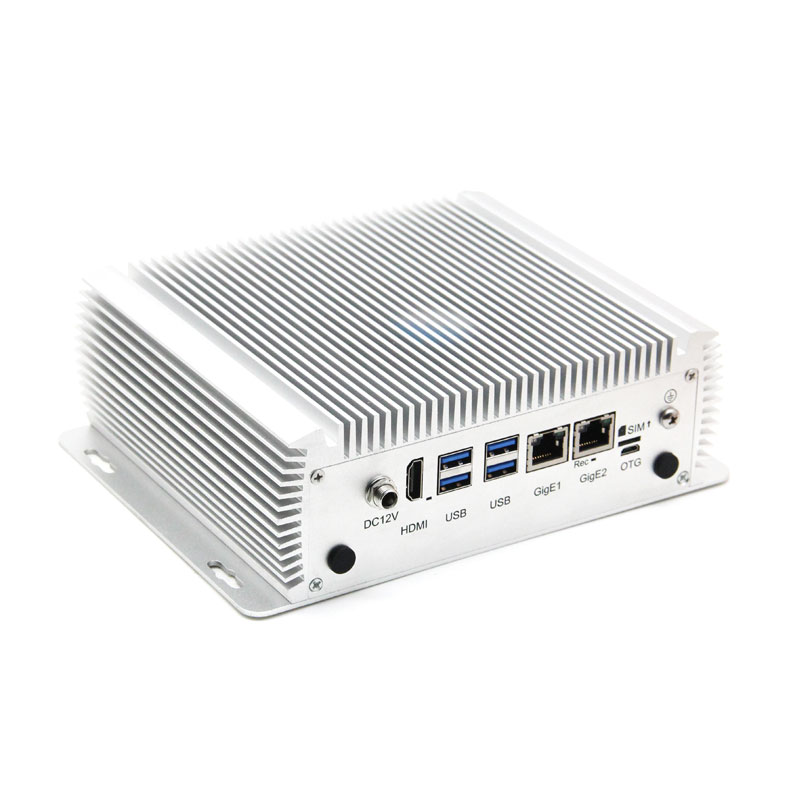

產(chǎn)品特性
* 適配模組: NVIDIA Jetson Orin NX/Orin Nano Module
* 工作溫度：-20°C ～ +65℃
* 尺寸：202mm*155mm*64.5mm
* 重量：1600g
|
Product Name
|
11F1E6
|
|
Jetson Module Supported
|
NVIDIA Jetson Orin Nano/Orin NX
|
|

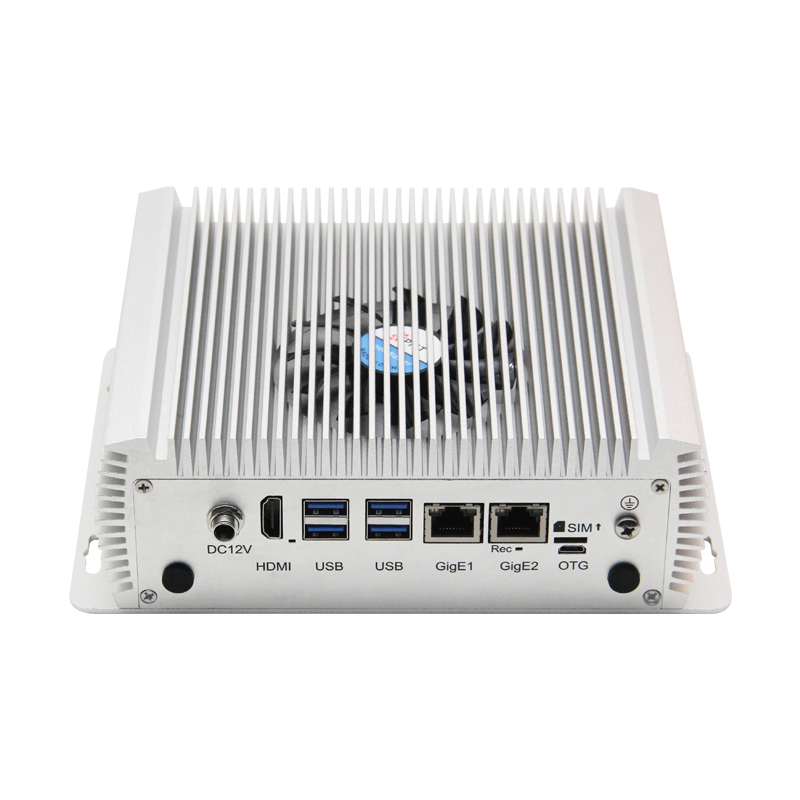

Networking
|
6x Gigabit Ethernet (10/100/1000 BAST-T)RJ45
|
|
USB
|
4xUSB3.0 Type-A 1x Micro USB |
|
Diaplay
|
1x HDMI
|
|
SIMcard slot
|
1x
|
|

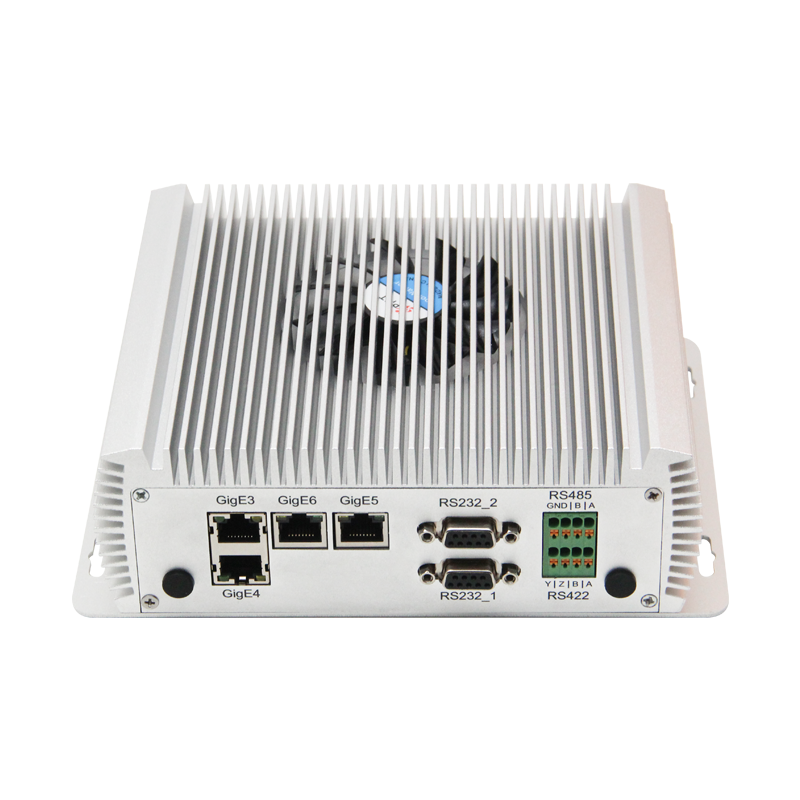

RS232 |
2x |
| RS485 |
1x |
| RS422 | 1x |
|
Mechanical
|
202mm x 155mm x 64.5mm
|
|
Weight
|
1600g
|
|
Operating Temperature
|
-20℃~+65℃
|
NVIDIA Jetson Orin NX/Orin Nano moduletechnical specification
|
|
Jetson Orin NX 16GB |
Jetson Orin NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
|
AI Performance |
157 TOPS |
117 TOPS |
67 TOPS |
34 TOPS |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
||
| CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
||
| Memory |
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
- (Supports external NVMe) |
|||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
CSI Camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
PCIe |
1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint) |
||
| USB |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
||
|
Networking |
1x GbE |
|||
| Display |
1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4** |
||
| Other I/O |
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
||
| PowerPower |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
|||
