NVIDIA Jetson 核心模組

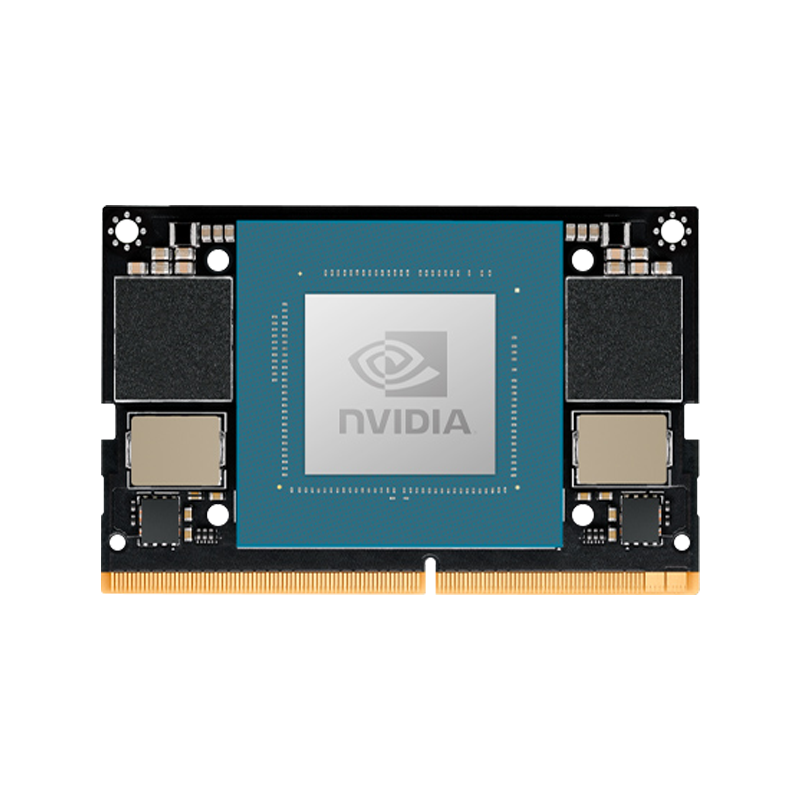

Jetson Orin Nano 模組

用戶手冊
京東訂購
淘寶訂購

A78AE CPU + 8GB LPDDR5 Up to 67 (Sparse) INT8 TOPs
? Jetson Orin Nano 4GB (ON 4GB) - Ampere GPU + ARM Cortex-A78AE CPU + 4GB LPDDR5 Up to 34 (Sparse) INT8 TOPs

Jetson Orin Nano 系列

Jetson Orin Nano 8GB

1024-core NVIDIA Ampere architecture GPU with 32 tensor cores
6-core Arm Cortex-A78AE v8.2
8GB 128-bit LPDDR5
Support for external NVMe
Voltage Input: 5V-20V
Module Power：7W-15W

Jetson Orin Nano 4GB

512-core NVIDIA Ampere architecture GPU with 16 tensor cores
6-core Arm Cortex-A78AE v8.2
4GB 64-bit LPDDR5
Support for external NVMe
Voltage Input: 5V-20V
Module Power：5W-10W

	Jetson Orin Nano 4GB	Jetson Orin Nano 8GB
AI Performance	34 TOPs	67 TOPs
GPU	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency	625MHz
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
CPU Max Frequency	1.5GHz
Memory	4GB 64-bit LPDDR5 34 GB/s	8GB 128-bit LPDDR5 68 GB/s
Storage	- (Supports externalNVMe)
Video Encode	1080p30 supported by 1-2 CPU cores
VideoDecode	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
PCIe*	1 x4 + 3 x1 (PCIeGen3, Root Port, & Endpoint)
USB*	3x USB 3.2 Gen2 (10Gbps) 3x USB 2.0
Networking*	1xGbE
Display	1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O	3x UART, 2x SPI, 2xI2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power	5W - 10W	7W - 15W
Mechanical	69.6mm x 45mm 260-pin SO-DIMMconnector

*USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
**See the Jetson Orin Nano Series Data Sheet for more details on additional compatibility to DP 1.4a and HDMI 2.1
***Virtual Channels for Jetson Orin NX and Jetson Orin Nano are subject to change
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
