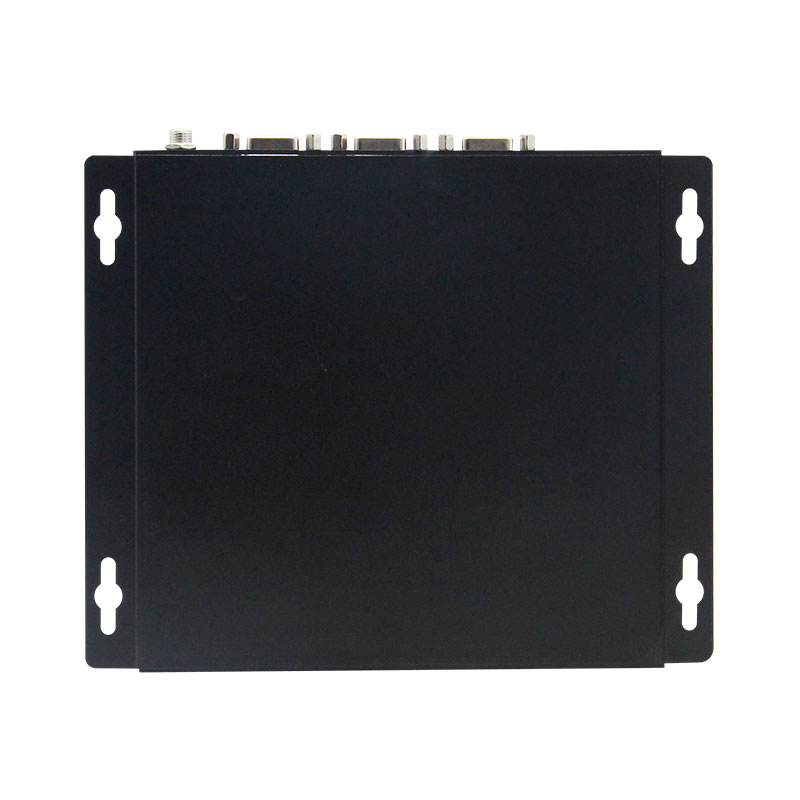

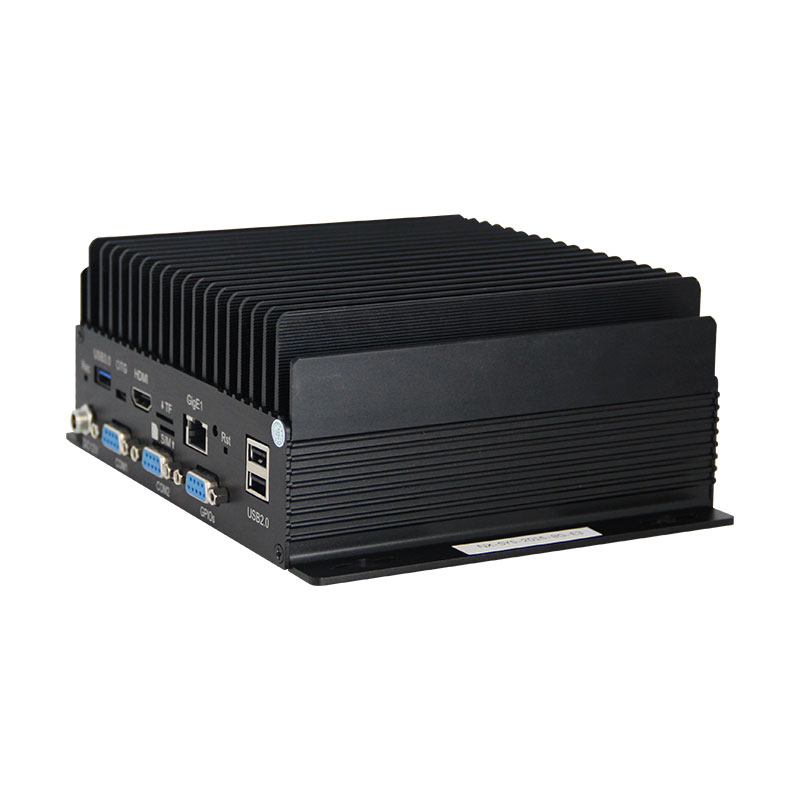

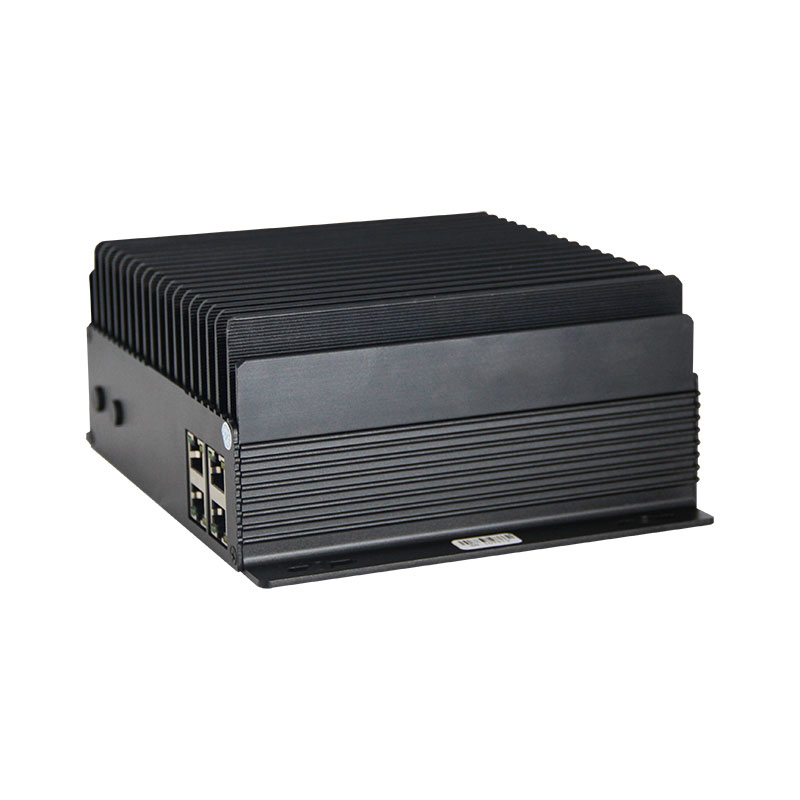

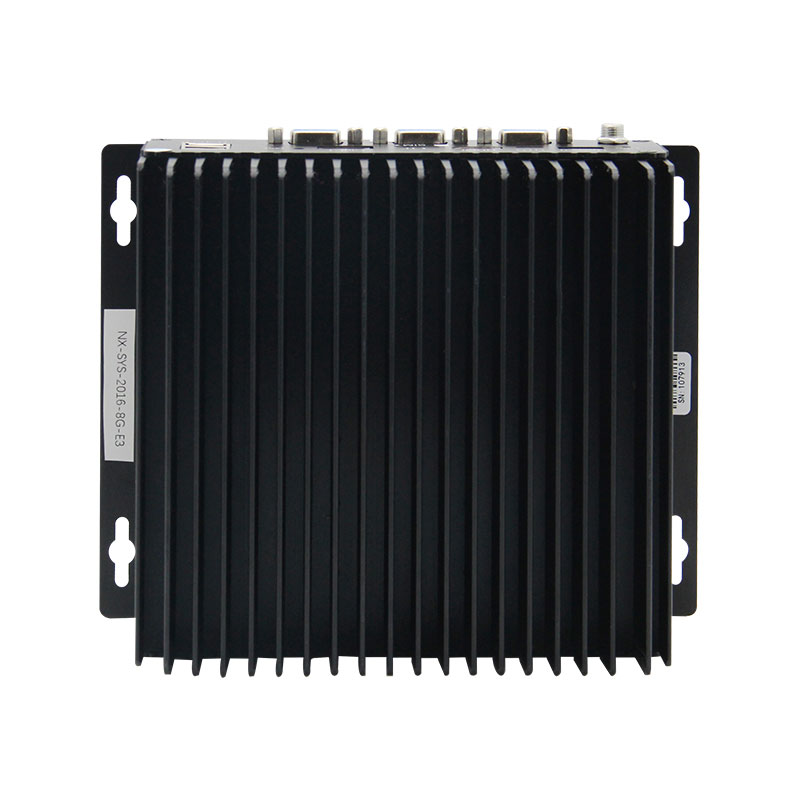

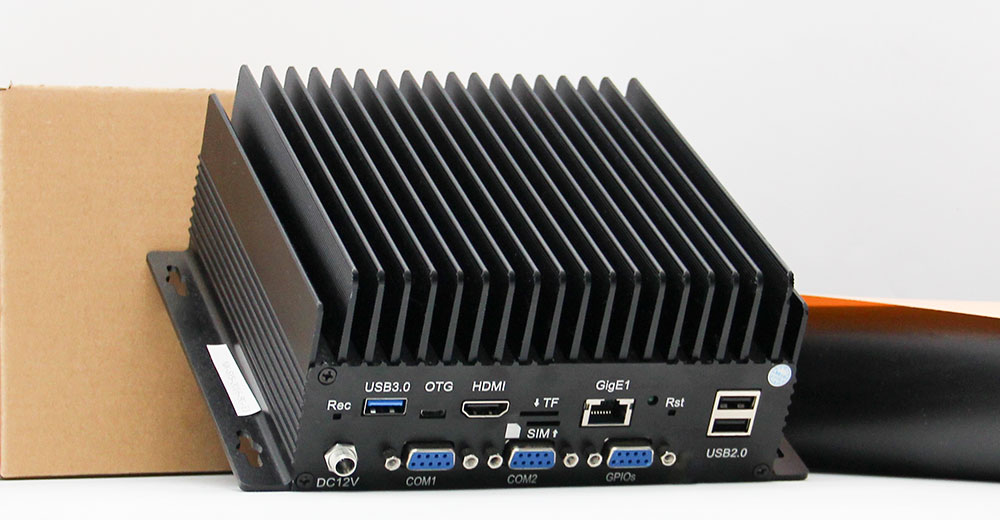

NVIDIA Jetson Orin NX 工控機 SYS-2016
* Other I/O: 1x Nano SIM, 1x CAN, 2x RS232, 3x GPIO, 1x GPO
* 尺寸: 190mm*160mm*76.3mm
* 工作溫度：-20°C to 65℃
* 零售業、人臉識別、無人船、工業自動化、IoT
|
Product Name
|
SYS-2016
|
|
Jetson Module Supported
|
NVIDIA Jetson Orin NX
|
|
Networking
|
1x Gigabit Ethernet (10/100/1000)
|
|
USB
|
1x USB 3.0
2x USB 2.0
1x Micro USB |
|
Display
|
1x HDMI
|
|
M.2 KEY M
|
2x M.2 KEY M interface
|
|
Other I/O
|
1x CAN, 3x GPIO, 2x RS232, 1x Nano SIM
|
|
Mechanical
|
190mm x 160mm x 76.3mm
|
|
Weight
|
1425g
|
|
Operating Temperature
|
-20℃~65℃
|
|
Module
|
NVIDIA Jetson Orin NX 16G
|
NVIDIA Jetson Orin NX 8G
|
|
AI Perf
|
157 TOPS
|
117 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
|
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 |
|
DL Accelerator
|
2x NVDLA v2
|
1x NVDLA v2
|
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
102.4GB/s |
|
Storage
|
-
(Supports external NVMe) |
|
|
Video Encode
|
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
|
|
Video Decode
|
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
|
CSI Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
|
Power
|
10W - 25W
|
10W - 20W
|
