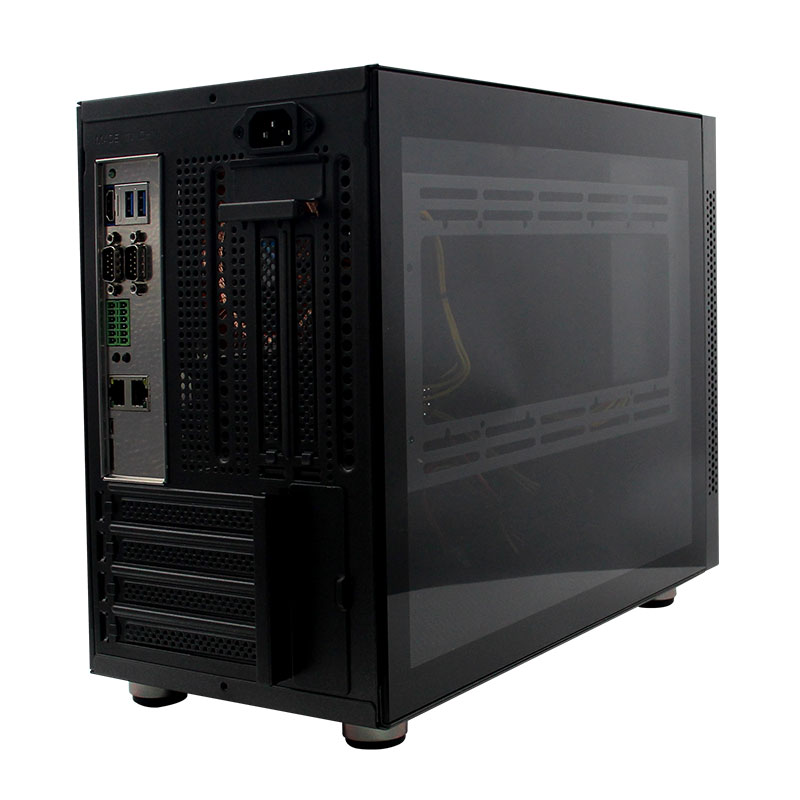

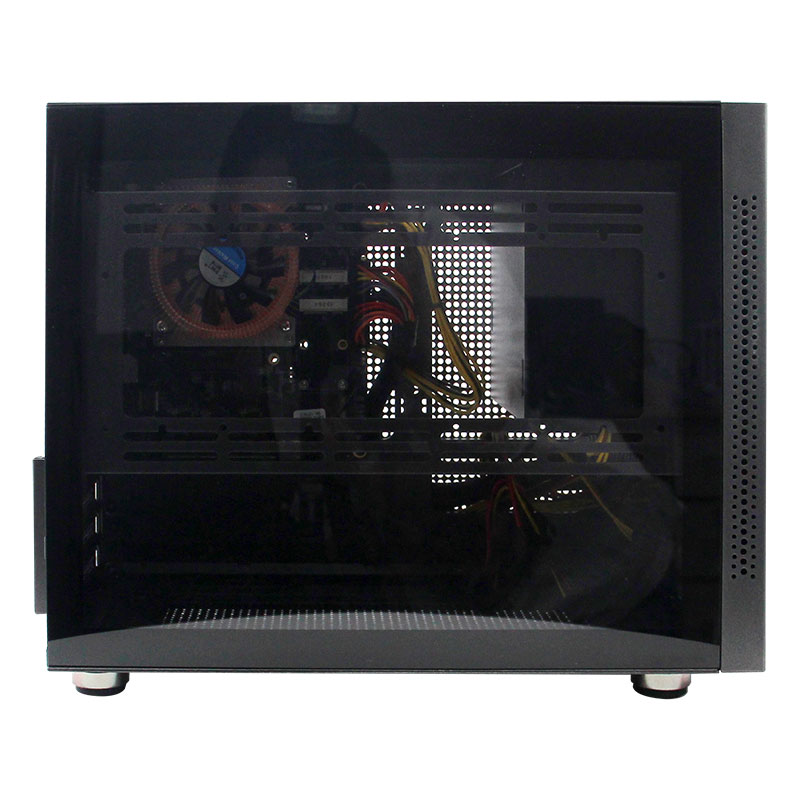

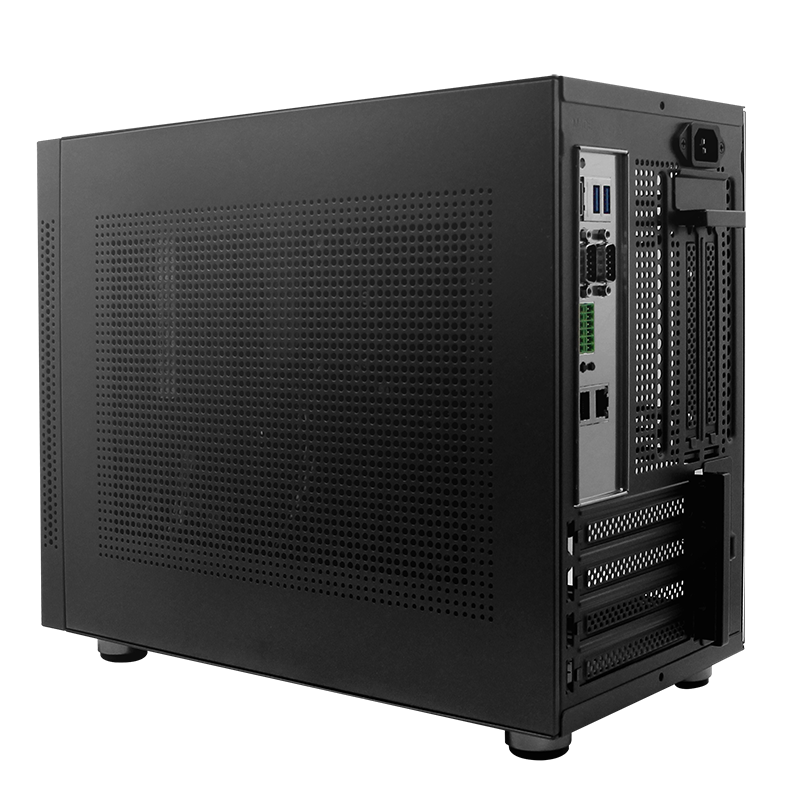

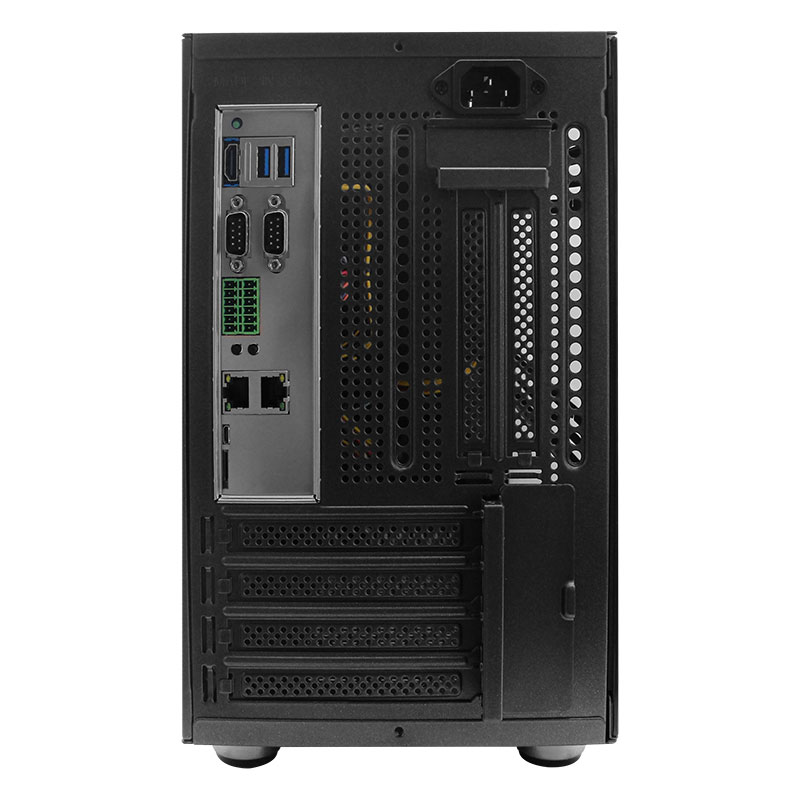

8F1E1是一款搭配NVIDIA Jetson AGX Xavier/AGX Orin核心模塊的立式工控機，具有豐富的對外接口，內部接口器件均采用寬溫型號
AI Performance
CPU
Memory

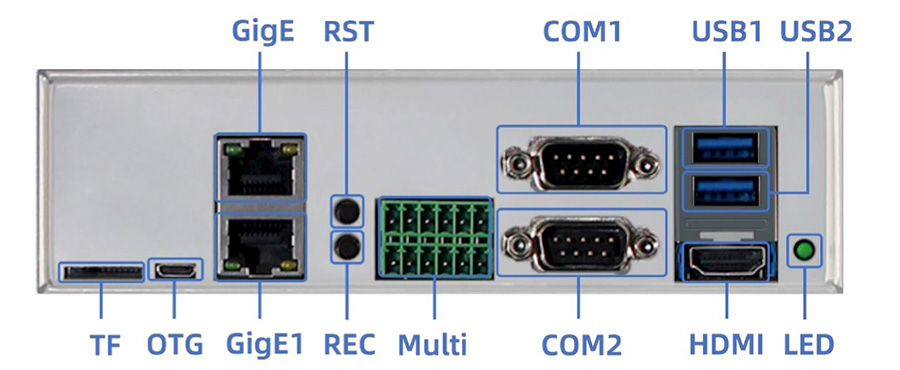

4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver)
Module
AGX Xavier 32G
AGX ORIN 32G
AGX ORIN 64G
32 TOPS
200 TOPS
275 TOPS
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
GPU
512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B
1 x Type B (OTG)
USB Type-A
1 x USB 3.1
2 x USB 3.1
2 x USB 3.1
Other I/O
Networking
2 x 10/100/1000 Ethernet/RJ45
Power Supply
AC 220V
Temperature
-20~+65°C
Dimensions
391mm×303mm×185 mm
Weight
7700g
