NVIDIA Jetson 整機

Jetson Xavier NX 工控機 SYS-2006

用戶手冊
京東訂購
淘寶訂購

NVIDIA Jetson Xavier NX，在15W功耗模式下可提供21 TOPS 算力，帶有 384 個 CUDA Cores、 48 個Tensor Cores、 2 個NVDLA engines, 6個ARM CPU核心、8 GB 128-bit LPDDR4x 51.2GB/s內(nèi)存，它可以同時運行多個網(wǎng)絡(luò)模型。

NVIDIA Jetson Xavier NX Module

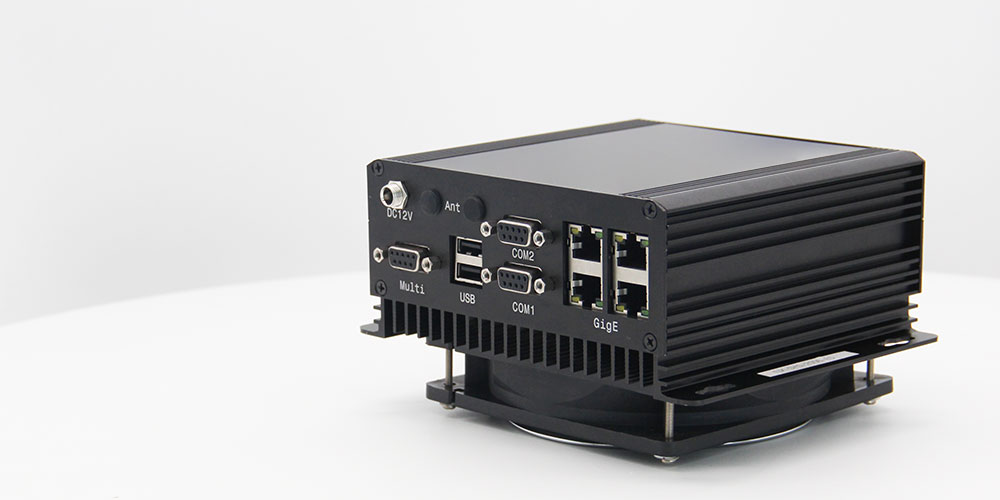

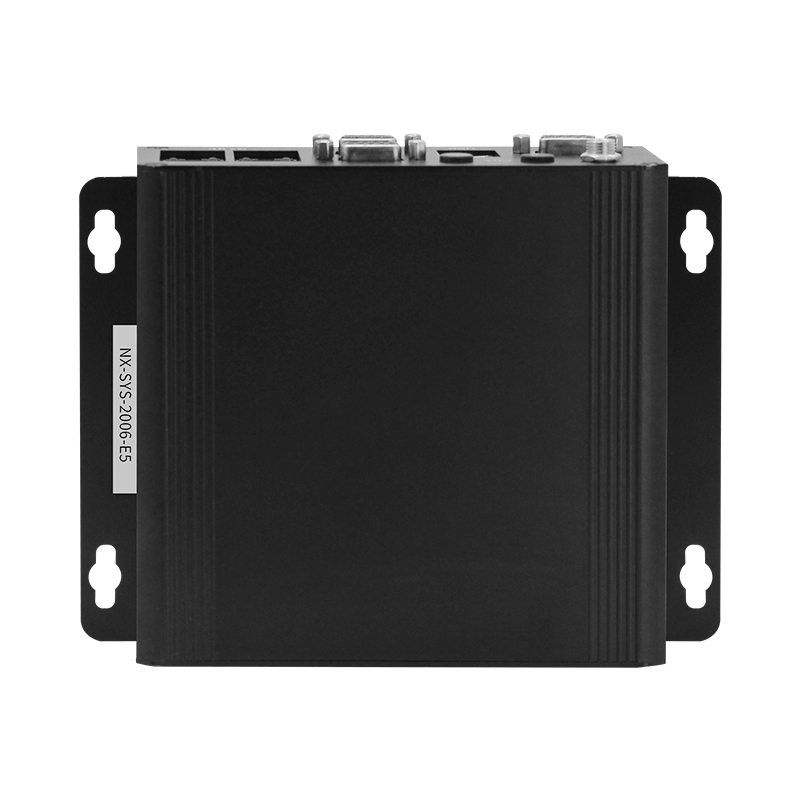

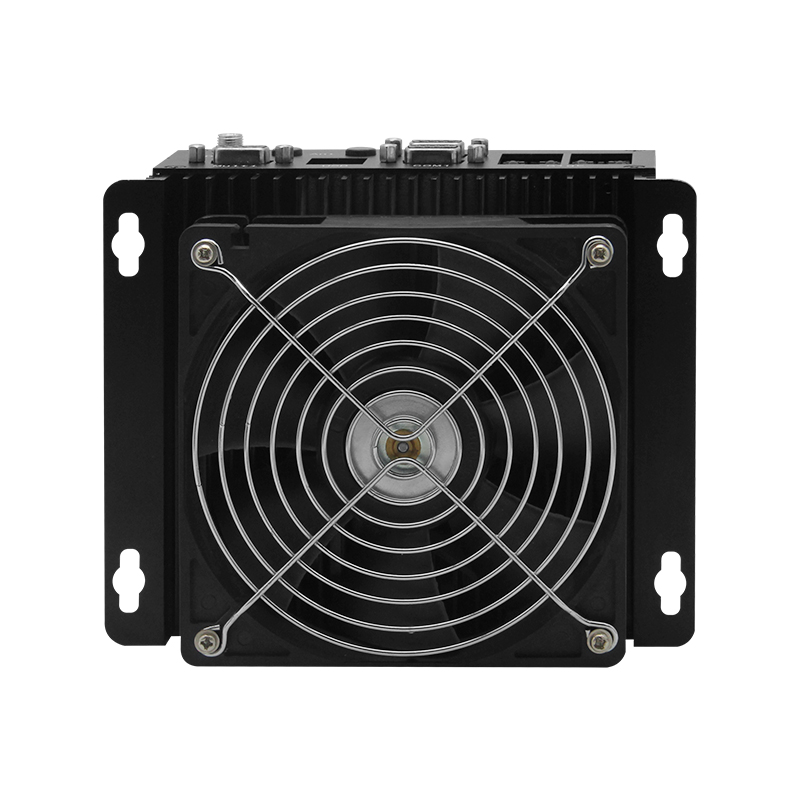

Embedded Computer SYS-2006

* NVIDIA Jetson Carrier Board: Support NVIDIA Jetson Xavier NX Module

* Versatile Connectivity:
Offer 1x RJ45, 2x USB 3.0, 1x USB 2.0, 1x HDMI and 1x USB Micro B
* Advanced Peripherals Supported:
Assemble 1x TF slot, 1x Nano SIM, 2 RS232, 3x GPIO, 1x GPO
* Input Power: DC +9V~+24V
* Compact and Durable during Operation:
Design in small size of 160mm*133mm*90mm to save operation space, and maintain function in the temperature range from -20°C to 65℃

* Expansion:

4G communication module, WIFI/Bluetooth module，Video capture/output module, Multi I/O module.

Product Name	NX-SYS-2006
Jetson Module Supported	NVIDIA Jetson Xavier NX
Networking	1x Gigabit Ethernet (10/100/1000)
USB	2x USB 3.0 Type-A 1x USB 2.0 1x Micro USB
Display	1x HDMI
Other I/O	1x Micro TF，1x Nano SIM，2x RS232，3x GPIO，1x GPO

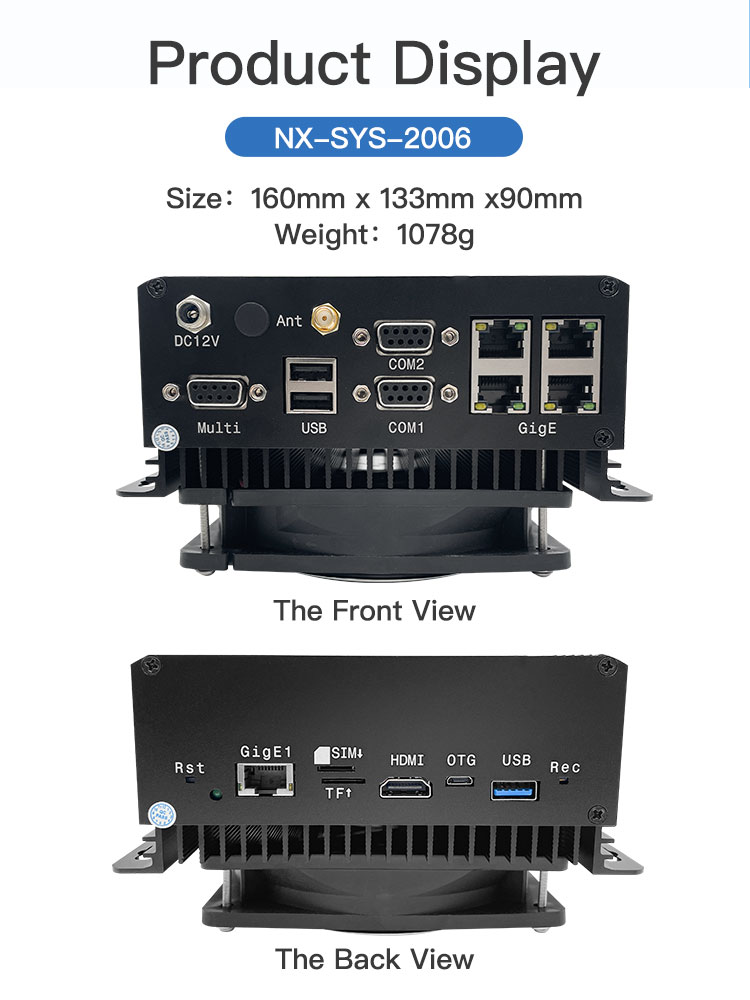

Mechanical	160mm x 133mm x 90mm
Weight	1078g
Operating Temperature	-20℃~+65℃
Power	DC +9V～+24V

	NVIDIA Jetson Xavier NX
AI Perf	21 TOPS
GPU	384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR4x 59.7GB/s
Storage	16GB eMMC 5.1
Video Encode	2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265)
CSI Camera	Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Power	10W - 20W

上一個：Jetson TX2 NX工控機 SYS-2006下一個：Jetson Nano 工控機 SYS-2006
