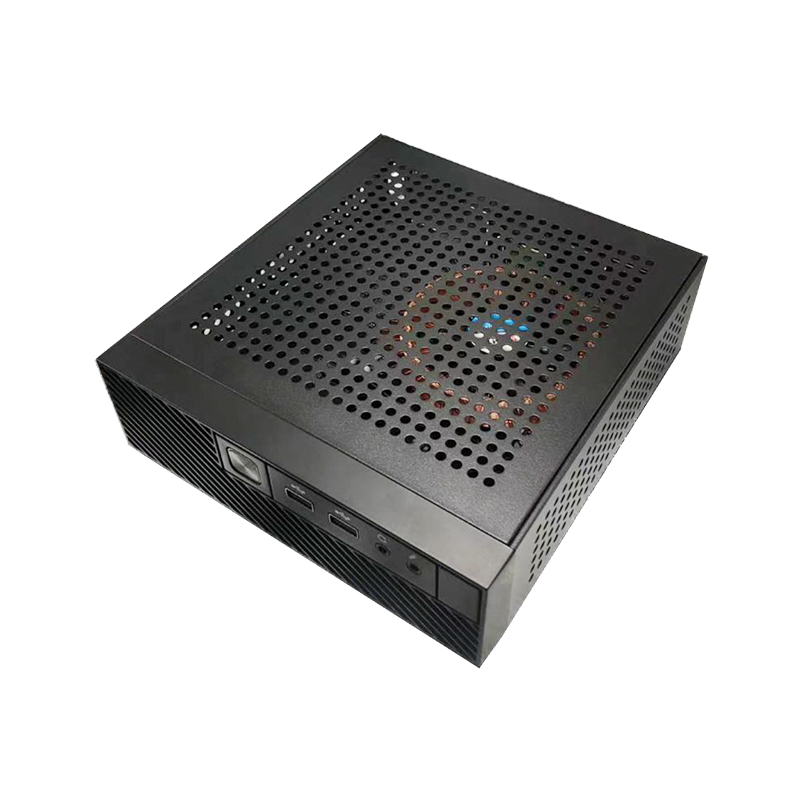

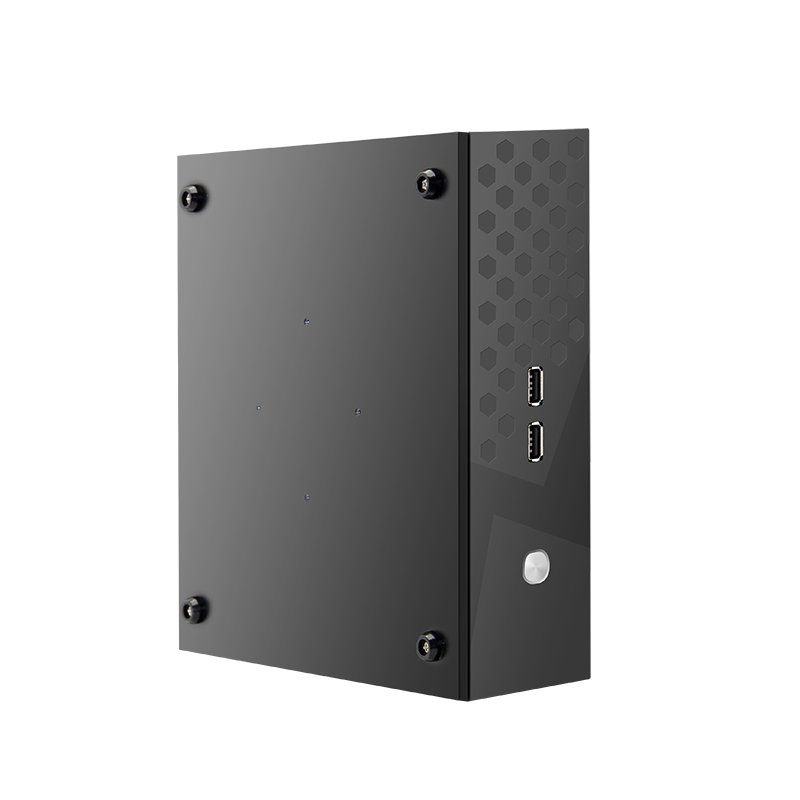

Jetson AGX Orin / AGX Xavier 工控機 8F3E1

Jetson AGX Orin / AGX Xavier 工控機 8F3E1

用戶手冊
京東訂購
淘寶訂購

產品尺寸：210mm×200mm×60mm
電源要求：12V
工作溫度： -20~+65℃
重量：1485g

NVIDIA Jetson AGX Xavier/AGX Orin

嵌入式工控機 8F3E1

8F3E1是采用NVIDIA AI嵌入式系統構建的緊湊型邊緣計算機

* 適配模組:

NVIDIA Jetson AGX Orin/AGX Xavier Module

* 接口:

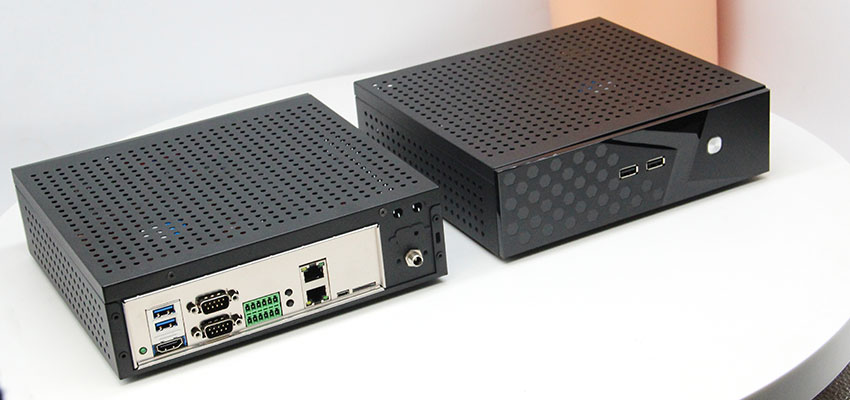

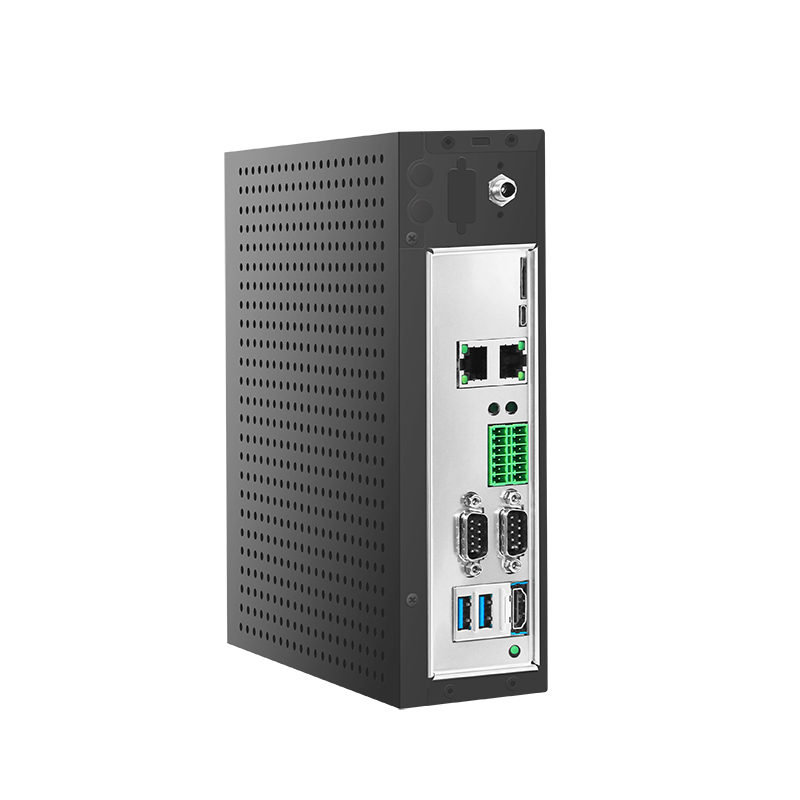

Offer 2x RJ45, 2x USB 3.0, 2x USB 2.0, 1x HDMI and 1x USB Micro B

* 外設支持:

1x fan, 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x TF slot, 2x DB9 connector and 1x24 pin expansion header

* 輸入電源:DC +12V

應用場景：

*自助機器
*無人駕駛船只
*工業自動化和控制系統
*數字標牌和媒體播放器
*物聯網和嵌入式系統
*教育和科研

Product Name	8F3E1
Jetson Module Supported	NVIDIA Jetson AGX Orin/AGX Xavier
Networking	2x Gigabit Ethernet (10/100/1000)
USB	2x USB 3.0 Type-A 2x USB 2.0 1x Micro-B
Camera	1x 120 pins CSI Camera expansion header
Display	1x HDMI
FAN	1x FAN connector（12V PWM）
M.2 KEY M	2x M.2 KEY M interface
Other I/O	2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
Mechanical	210mm x 200mm x 60mm
Weight	1485g
Operating Temperature	-20℃~65℃

Y-C8 自研載板/開發板具有網絡功能，配備兩個千兆以太網(10/100/1000)端口，可實現快速數據傳輸速度。它還配備了2個USB 3.0 Type-A接口，2個USB 2.0接口和1個Micro-B接口，用于多種連接。

Note

當與Jetson AGX Xavier模塊配合使用時，只有一個USB 3.1可用，其余為USB 2.0，一個RJ45網口可選

	AGX Xavier 32G	AGX Xavier Industrial	AGX Orin 32G	AGX Orin 64G
AI Performance	32 TOPS	30 TOPS	200 TOPS	275 TOPS
GPU	512-core NVIDIA Volta GPU with 64 Tensor Cores		1792-core NVIDIA Ampere GPU with 56 Tensor Cores	2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU	8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3		8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory	32GB 256-bit LPDDR4x 136.5GB/s	32GB 256-bit LPDDR4x (ECC support) 136.5GB/s	32GB 256-bit LPDDR5 204.8 GB/s	64GB 256-bit LPDDR5 204.8 GB/s
Storage	32GB eMMC 5.1	64GB eMMC 5.1
Video Encode	4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265)	2x 4K60 (H.265) 6x 4K30 (H.265) 12x 1080p60 (H.265) 24x 1080p30 (H.265)	1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265)	2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode	2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265)	2x 8K30 (H.265) 4x 4K60 (H.265) 8x 4K30 (H.265) 18x 1080p60 (H.265) 36x 1080p30 (H.265)	1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265)	1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe	1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint)		Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking	10/100/1000 BASE-T Ethernet		1x GbE 4x 10GbE
Display	3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support		1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power	10W - 30W	20W - 40W	15W - 40W	15W - 60W
